Node Type Emphasis
This week, I focused on refining the node labels in the graph visualization. The primary change was to emphasize the node types by applying bold formatting, making it easier to distinguish between different types at a glance.
Here’s the updated code:
// Text for new nodes
nodeEnter.append('text')
.attr("dy", ".35em")
.attr("font-family", "sans-serif")
.attr("font-size", this.config.fontSize + "px")
.attr("pointer-events", "none")
.attr("fill", "#000")
.attr("y", 24)
.attr("x", 10)
.attr("text-anchor", "middle")
.each(function(d: VisibleTrialNode) {
const textLabel = d3_select(this);
const name = d.data.name.split('<br>');
if (name.length > 1) {
textLabel.append("tspan")
.attr("x", "10")
.attr("dy", ".35em")
+ .attr("font-weight", "bold")
.text(name[0]);
textLabel.append("tspan")
.attr("x", "10")
.attr("dy", "1em")
.text(name[1]);
textLabel.attr("class", "nowrap")
} else {
return textLabel.text(d.data.name);
}
});

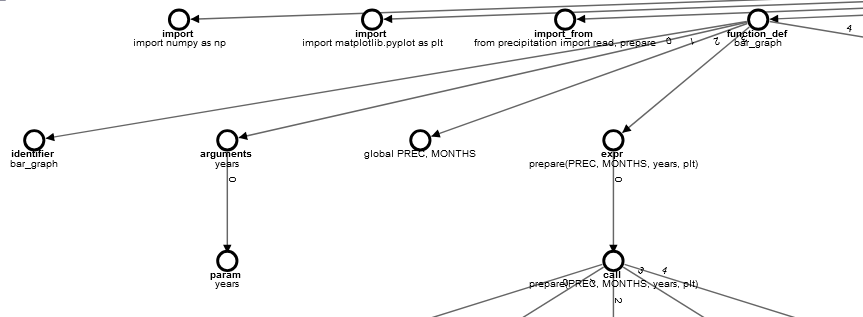

With this change, the node labels are more visually distinct:
Revisiting the AST
During Weeks 3-6, I worked on integrating the trial’s Abstract Syntax Tree (AST), now referred to as the Definition AST, with the noWorkflow system. This week, I revisited that work to ensure it’s fully aligned with the project’s requirements.
- class DefinitionAst:
- def __init__(self):
+ class DefinitionAst:
+ def __init__(self, trial):
+ self.trial = weakref.proxy(trial)
self.components = self.code_component_definition()
self.compositions = self.composition_definition()
self.def_dict = self.label_def()
self.node_dict = {}
def code_component_definition(self):
"""Return a code component definition"""
return relational.session.query(CodeComponent.m).filter((
- (CodeComponent.m.trial_id == self.id) &
+ (CodeComponent.m.trial_id == self.trial.trial.id) &
(CodeComponent.m.type != "syntax")
)).all()
def composition_definition(self):
"""Return a composition definition"""
return relational.session.query(Composition.m).filter((
- (Composition.m.trial_id == self.id) &
+ (Composition.m.trial_id == self.trial.trial.id) &
(Composition.m.type != '*op_pos')
)).all()
def label_def(self):
"Return the label needed for the trial's definition multi-name node."
def_id = relational.session.query(CodeComponent.m.id).join(
Composition.m,
(CodeComponent.m.id == Composition.m.part_id) &
(CodeComponent.m.trial_id == Composition.m.trial_id)
).filter(
- (CodeComponent.m.trial_id == self.id) &
+ (CodeComponent.m.trial_id == self.trial.trial.id) &
(CodeComponent.m.type == 'function_def') | (
CodeComponent.m.type == 'class_def')
).subquery()
labels = relational.session.query(
...
).filter(
(CodeComponent.m.trial_id == self.trial.trial.id) &
(CodeComponent.m.type != 'syntax') &
Composition.m.whole_id.in_(def_id)
).all()
...
def __call__(self):
...
- return self.node_dict[1]
+ ast_ = {
+ "ast": {self.trial.trial.id: ast.dump(ast.parse(self.node_dict[1]))},
+ "trial": self.trial.trial.id
+ }
+ return ast_
The trial AST isn’t yet integrated into the now vis interface. However, I’ve set up a route to retrieve the trial definition and send the AST representation in JSON format. This groundwork will be useful for future development.
@app.route("/definition/<trial_id>/ast.json")
def definition_ast(trial_id):
"""Respond trial definition as AST"""
trial = Definition(trial_id)
ast = trial.ast
return jsonify(ast())
{
"ast": {
"08ece614-f5ae-4e65-93a0-5a8b44ac9a44": "Module(body=[Import(names=[alias(name='numpy', asname='np')]), Import(names=[alias(name='matplotlib.pyplot', asname='plt')]), ImportFrom(module='precipitation', names=[alias(name='read'), alias(name='prepare')], level=0), FunctionDef(name='bar_graph', args=arguments(posonlyargs=[], args=[arg(arg='years')], kwonlyargs=[], kw_defaults=[], defaults=[]), body=[Global(names=['PREC', ' MONTHS']), Expr(value=Call(func=Name(id='prepare', ctx=Load()), args=[Name(id='PREC', ctx=Load()), Name(id='MONTHS', ctx=Load()), Name(id='years', ctx=Load()), Name(id='plt', ctx=Load())], keywords=[])), Expr(value=Call(func=Attribute(value=Name(id='plt', ctx=Load()), attr='savefig', ctx=Load()), args=[Constant(value='\"out.png\"')], keywords=[]))], decorator_list=[], type_params=[]), Assign(targets=[Name(id='MONTHS', ctx=Load())], value=BinOp(left=Call(func=Attribute(value=Name(id='np', ctx=Load()), attr='arange', ctx=Load()), args=[Constant(value='12')], keywords=[]), op=Add(), right=Constant(value='1'))), Assign(targets=[Tuple(elts=[Name(id='d13', ctx=Load()), Name(id='d14', ctx=Load())], ctx=Load())], value=Tuple(elts=[Call(func=Name(id='read', ctx=Load()), args=[Constant(value=\"'p13.dat'\")], keywords=[]), Call(func=Name(id='read', ctx=Load()), args=[Constant(value=\"'p14.dat'\")], keywords=[])], ctx=Load())), Assign(targets=[Name(id='PREC', ctx=Load()), Tuple(elts=[Name(id='prec13', ctx=Load()), Name(id='prec14', ctx=Load())], ctx=Load())], value=Tuple(elts=[List(elts=[], ctx=Load()), List(elts=[], ctx=Load())], ctx=Load())), For(target=Name(id='i', ctx=Load()), iter=Name(id='MONTHS', ctx=Load()), body=[Expr(value=Call(func=Attribute(value=Name(id='prec13', ctx=Load()), attr='append', ctx=Load()), args=[Call(func=Name(id='sum', ctx=Load()), args=[Subscript(value=Name(id='d13', ctx=Load()), slice=Name(id='i', ctx=Load()), ctx=Load())], keywords=[])], keywords=[])), Expr(value=Call(func=Attribute(value=Name(id='prec14', ctx=Load()), attr='append', ctx=Load()), args=[Call(func=Name(id='sum', ctx=Load()), args=[Subscript(value=Name(id='d14', ctx=Load()), slice=Name(id='i', ctx=Load()), ctx=Load())], keywords=[])], keywords=[]))], orelse=[]), Expr(value=Call(func=Name(id='bar_graph', ctx=Load()), args=[List(elts=[Constant(value=\"'2013'\"), Constant(value=\"'2014'\")], ctx=Load())], keywords=[]))], type_ignores=[])"
},
"trial": "08ece614-f5ae-4e65-93a0-5a8b44ac9a44"
}
This week has been crucial in fine-tuning the project, ensuring it’s in top shape as I prepare for the final report in Week 12. I’m excited to wrap up the work and share the results with the community.
